Features

(Click here for a PDF of the PCU100 Brochure)

The Lynx Series Protocol Converters continuously transfer data between MIL-STD-1553B and ARINC-429 Data Busses. The units can be customized by the user via a laptop computer connection allowing the definition of MIL-STD-1553B sub-addresses and ARINC-429 labels for transfer.

12    ARINC-429 Inputs (12.5 or 100 kbps)
  4    ARINC-429 Outputs (12.5 or 100 kbps)
  1    MIL-STD-1553B Dual-Redundant RT/BC/BM
  1    MIL-STD-1553B Dual Redundant BM
  6    28V/Open Discrete Inputs
  6    Open/Ground Discrete Inputs
  2    28V/Open Discrete Outputs (May be used as Inputs)
  2    Open/Ground Discrete Outputs (May be used as Inputs)
  1    RS-232 Interface for Configuration via PC/Laptop

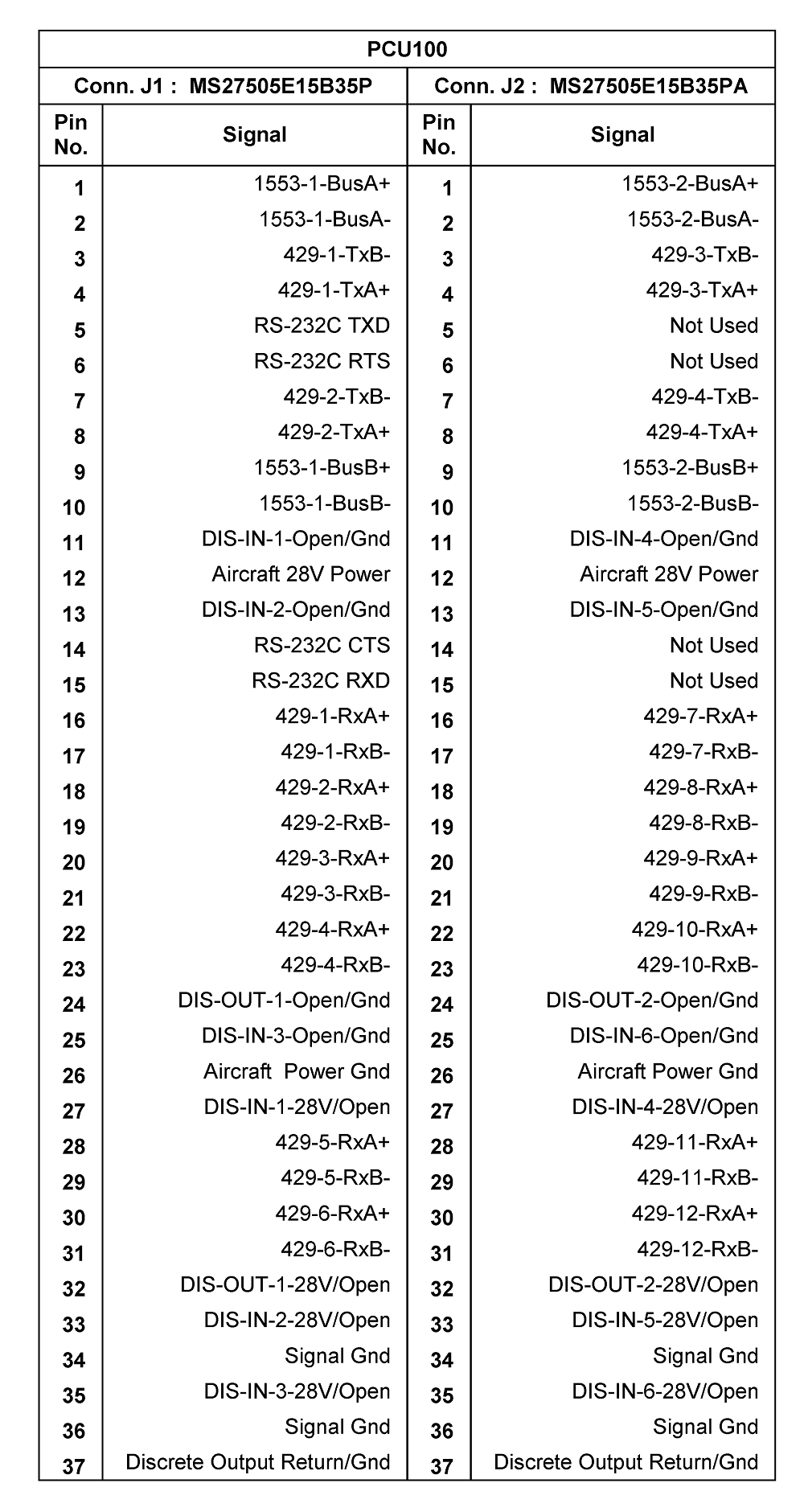

Click here for a PDF of the Pin List

Click here for a PDF of the PCU100AAA Installation drawing
